Kansas University

Pre-Installation Check

1. Inspection: Ensured all shipped components were free of damage.

Step-by-Step Installation

1. Preparation:
   • Removed connecting piping from inside the poly tank.

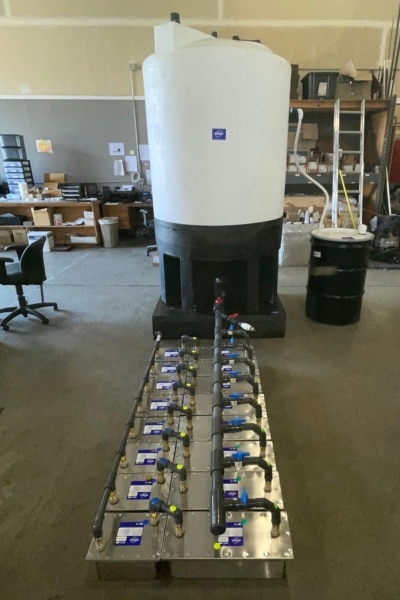

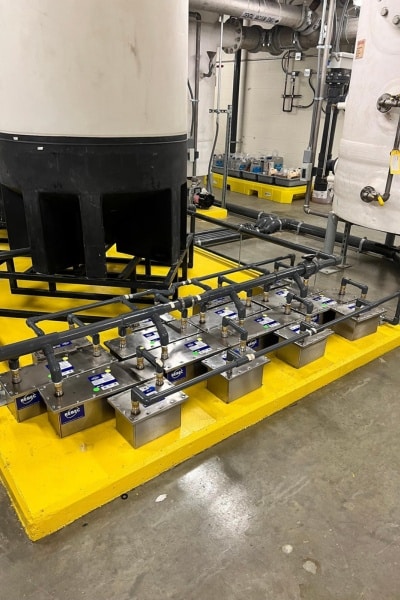

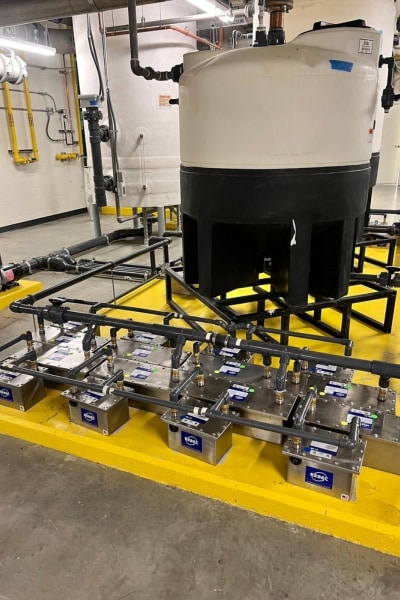

   • Placed the 500-gallon poly tank in the desired location, keeping it on the black stand it was shipped with.
2. Plumbing Connection:
   • Connected plumbing from the existing system to the top of the poly tank.
   • Ran a vent from the poly tank to an outside source.
   • Bolted the tank to the floor/stand, and strapped it to the nearest wall.
3. Component Connection:

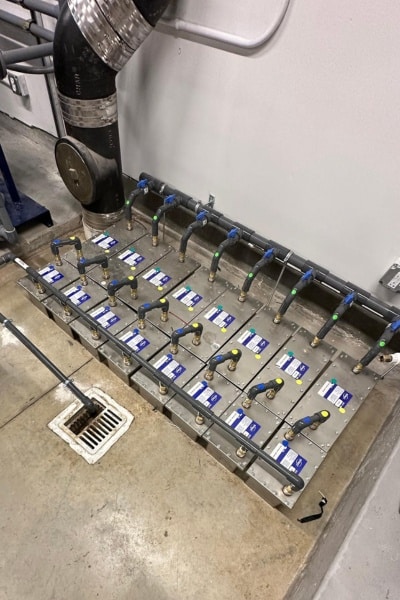

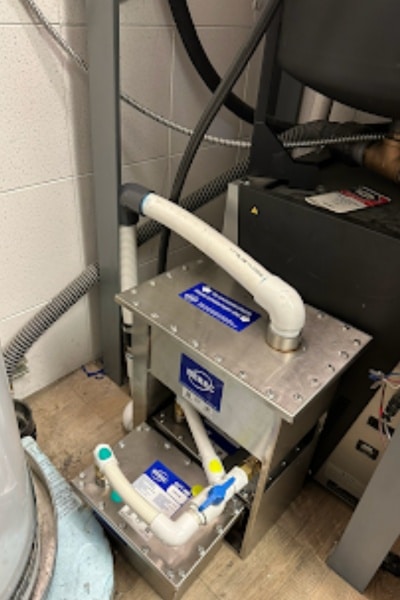

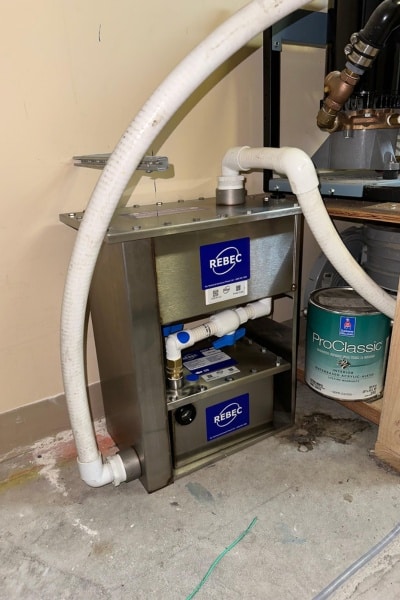

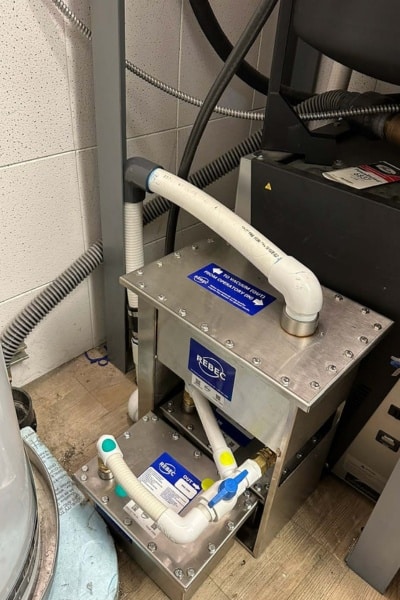

   • Removed caps and placed buffer and collectors in series.

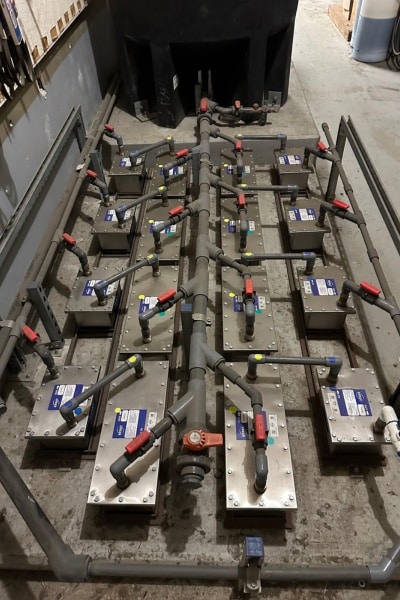

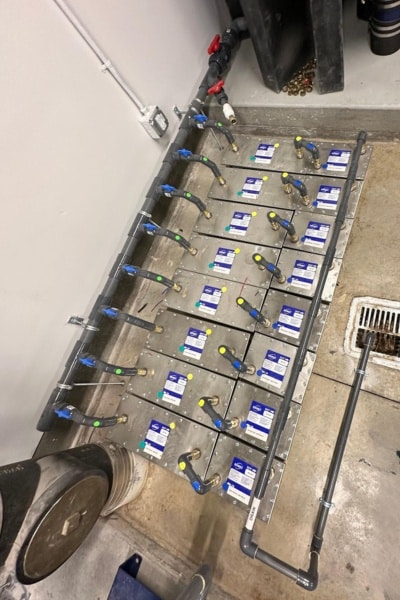

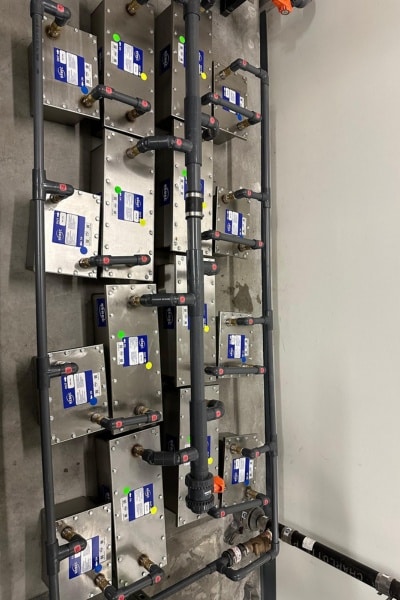

   • Connected the piping according to the color-coding:
     • Green: Input to 7000 Buffer
     • Yellow: Output from 7000 Buffer
     • Blue: Input to 3001 Collector from 7000 Buffer
     • No Dot: Output from 3001 ISO collectors to drainpipe
   • Snug fittings without over-tightening to avoid damage.
4. Sealing and Draining:
   • Ensured rubber gaskets were in place on each hose connector.
   • Glued and connected the pipe to the end of the system for draining.
   • Extended a pipe from the end of the system to the desired drain location.
5. Overflow Protection:
   • Connected the one-inch bulkhead at the 400-gallon mark to an overflow container, such as a 55-gallon drum.

1. Leak Check:
   • Perform leak tests at the end of the day or when effluent is piped to the poly tank.
2. Maintenance:
   • Regularly check the system to ensure proper flow and drainage.
   • Monthly inspections of the 3001 collectors’ sight windows are required after the poly tank has been emptied for 12 hours.
   • Use a microbial line cleanser, such as Pristine Environmental's VacuBlu, for extended system life.

1. Ease of Installation: Color-coded system for straightforward setup.
2. Safety and Compliance: Designed to prevent leaks and overflow, adhering to federal regulations.
3. Minimal Maintenance: Closed system with monthly checks, promoting efficiency and longevity.

The installation at the University of Kansas, Joplin, demonstrates Rebec Environmental’s commitment to providing reliable and efficient effluent amalgam management systems. The straightforward installation process, combined with robust design features, ensures long-term functionality and environmental compliance.
